0.33µF

Product Code	Data Sheet	Attributes

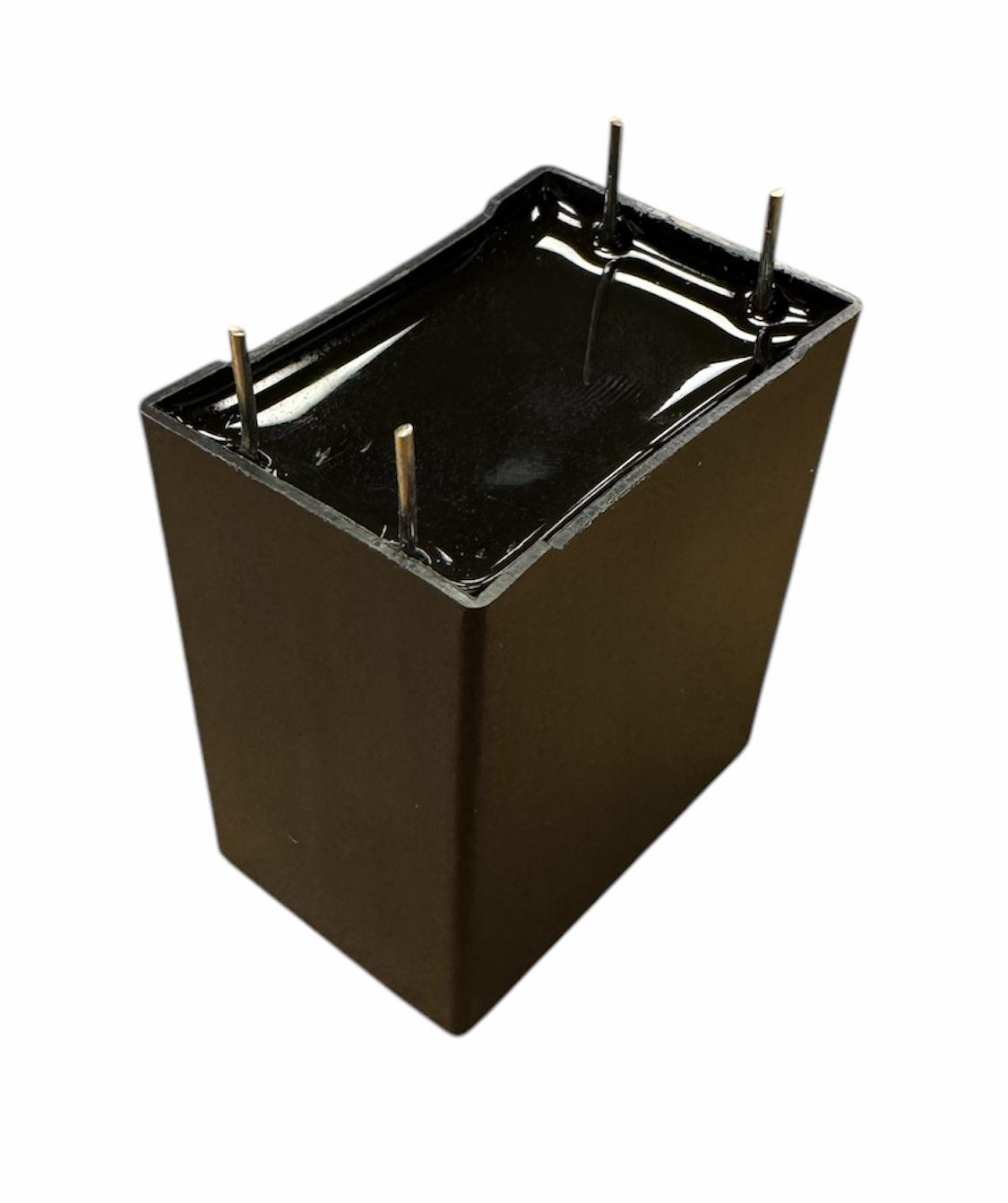

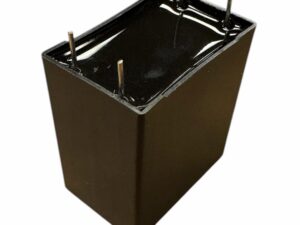

BLS 0.33 20 700	Data Sheet: BLS	Application: Electronic Lighting, High Frequency, High Voltage, Snubber and SCR commutating circuits, Switching spikes suppression in SMPS Capacitance (µF): 0.33 Tolerance: ±20% Voltage Rating - DC: 2000V Voltage Rating - AC: 700V Operating Temperature: -40 °C to +105 °C Lifecycle @ Rated Temp & Voltage: 60,000 hrs Construction: non-inductive wound double-sided metallized polyester film electrodes Dielectric Material: Polypropylene - Double Metallized Case: Retardant Case Dimension inches: Dimension mm: 26.0mm T x 39.0mm H x 42.0mm L
BLS 0.33 5 400	Data Sheet: BLS	Application: Electronic Lighting, High Frequency, High Voltage, Snubber and SCR commutating circuits, Switching spikes suppression in SMPS Capacitance (µF): 0.33 Tolerance: ±5% Voltage Rating - DC: 630V Voltage Rating - AC: 400V Operating Temperature: -40 °C to +105 °C Lifecycle @ Rated Temp & Voltage: 60,000 hrs Construction: non-inductive wound double-sided metallized polyester film electrodes Dielectric Material: Polypropylene - Double Metallized Case: Retardant Case Dimension inches: Dimension mm: 23.0mm T x 23.0mm H x 26.5mm L
BLS 0.33 5 600	Data Sheet: BLS	Application: Electronic Lighting, High Frequency, High Voltage, Snubber and SCR commutating circuits, Switching spikes suppression in SMPS Capacitance (µF): 0.33 Tolerance: ±5% Voltage Rating - DC: 1200V Voltage Rating - AC: 600V Operating Temperature: -40 °C to +105 °C Lifecycle @ Rated Temp & Voltage: 60,000 hrs Construction: non-inductive wound double-sided metallized polyester film electrodes Dielectric Material: Polypropylene - Double Metallized Case: Retardant Case Dimension inches: Dimension mm: 18.0mm T x 30.0mm H x 42.0mm L
BLS 0.33 5 650	Data Sheet: BLS	Application: Electronic Lighting, High Frequency, High Voltage, Snubber and SCR commutating circuits, Switching spikes suppression in SMPS Capacitance (µF): 0.33 Tolerance: ±5% Voltage Rating - DC: 1600V Voltage Rating - AC: 650V Operating Temperature: -40 °C to +105 °C Lifecycle @ Rated Temp & Voltage: 60,000 hrs Construction: non-inductive wound double-sided metallized polyester film electrodes Dielectric Material: Polypropylene - Double Metallized Case: Retardant Case Dimension inches: Dimension mm: 20.5mm T x 34.0mm H x 42.0mm L
BLS 0.33 5 700	Data Sheet: BLS	Application: Electronic Lighting, High Frequency, High Voltage, Snubber and SCR commutating circuits, Switching spikes suppression in SMPS Capacitance (µF): 0.33 Tolerance: ±5% Voltage Rating - DC: 2000V Voltage Rating - AC: 700V Operating Temperature: -40 °C to +105 °C Lifecycle @ Rated Temp & Voltage: 60,000 hrs Construction: non-inductive wound double-sided metallized polyester film electrodes Dielectric Material: Polypropylene - Double Metallized Case: Retardant Case Dimension inches: Dimension mm: 26.0mm T x 39.0mm H x 42.0mm L
PXK (15.0 x 10.0 x 16.0) 0.33 10 305	Data Sheet: PXK	Application: Class X-2 EMI Noise Suppression Capacitance (µF): 0.33 Tolerance: ±10% Voltage Rating - DC: 305V Operating Temperature: -40 °C to +110 °C Lifecycle @ Rated Temp & Voltage: 60,000 hrs Construction: non-inductive wound metallized polypropylene film Dielectric Material: Polypropylene - Metallized Case: Preformed Case with Epoxy Fill Dimension mm: 10.0mm T x 16.0mm H x 15.0mm W
PXK (15.0 x 8.5 x 14.0) 0.33 10 305	Data Sheet: PXK	Application: Class X-2 EMI Noise Suppression Capacitance (µF): 0.33 Tolerance: ±10% Voltage Rating - DC: 305V Operating Temperature: -40 °C to +110 °C Lifecycle @ Rated Temp & Voltage: 60,000 hrs Construction: non-inductive wound metallized polypropylene film Dielectric Material: Polypropylene - Metallized Case: Preformed Case with Epoxy Fill Dimension mm: 8.5mm T x 14.0mm H x 15.0mm W
PXK (18.0 x 10.0 x 16.5) 0.33 10 305	Data Sheet: PXK	Application: Class X-2 EMI Noise Suppression Capacitance (µF): 0.33 Tolerance: ±10% Voltage Rating - DC: 305V Operating Temperature: -40 °C to +110 °C Lifecycle @ Rated Temp & Voltage: 60,000 hrs Construction: non-inductive wound metallized polypropylene film Dielectric Material: Polypropylene - Metallized Case: Preformed Case with Epoxy Fill Dimension mm: 10.0mm T x 16.5mm H x 18.0mm W
PXK (18.0 x 10.0 x 16.5) 0.33 10 350	Data Sheet: PXK	Application: Class X-2 EMI Noise Suppression Capacitance (µF): 0.33 Tolerance: ±10% Voltage Rating - DC: 350V Operating Temperature: -40 °C to +110 °C Lifecycle @ Rated Temp & Voltage: 60,000 hrs Construction: non-inductive wound metallized polypropylene film Dielectric Material: Polypropylene - Metallized Case: Preformed Case with Epoxy Fill Dimension mm: 10.0mm T x 16.5mm H x 18.0mm W
PXK (18.0 x 11.0 x 18.5) 0.33 10 305	Data Sheet: PXK	Application: Class X-2 EMI Noise Suppression Capacitance (µF): 0.33 Tolerance: ±10% Voltage Rating - DC: 305V Operating Temperature: -40 °C to +110 °C Lifecycle @ Rated Temp & Voltage: 60,000 hrs Construction: non-inductive wound metallized polypropylene film Dielectric Material: Polypropylene - Metallized Case: Preformed Case with Epoxy Fill Dimension mm: 11.0mm T x 18.5mm H x 18.0mm W
PXK (18.0 x 7.0 x 13.0) 0.33 10 305	Data Sheet: PXK	Application: Class X-2 EMI Noise Suppression Capacitance (µF): 0.33 Tolerance: ±10% Voltage Rating - DC: 305V Operating Temperature: -40 °C to +110 °C Lifecycle @ Rated Temp & Voltage: 60,000 hrs Construction: non-inductive wound metallized polypropylene film Dielectric Material: Polypropylene - Metallized Case: Preformed Case with Epoxy Fill Dimension mm: 7.0mm T x 13.0mm H x 18.0mm W
PXK (18.0 x 7.5 x 17.5) 0.33 10 305	Data Sheet: PXK	Application: Class X-2 EMI Noise Suppression Capacitance (µF): 0.33 Tolerance: ±10% Voltage Rating - DC: 305V Operating Temperature: -40 °C to +110 °C Lifecycle @ Rated Temp & Voltage: 60,000 hrs Construction: non-inductive wound metallized polypropylene film Dielectric Material: Polypropylene - Metallized Case: Preformed Case with Epoxy Fill Dimension mm: 7.5mm T x 17.5mm H x 18.0mm W
