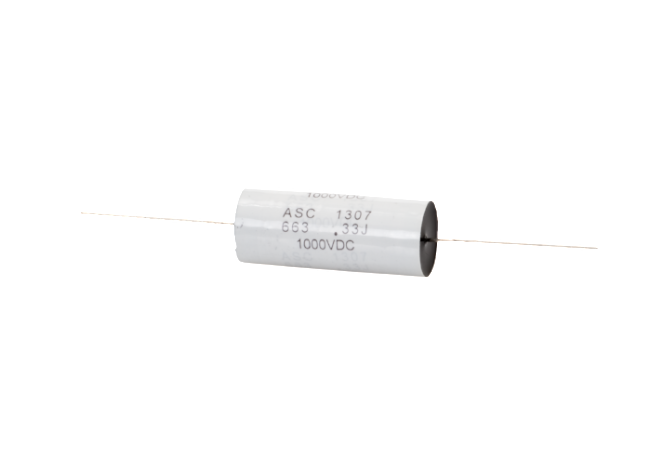

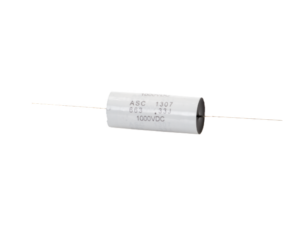

X663F

Product Code	Data Sheet	Attributes
X663F 2 5 400	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 2 Tolerance: ±5% Voltage Rating - DC: 400V Operating Temperature: -55 °C to +85 °C IPeak: 13 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Construction: non-inductive wound metallized polyester film Dielectric Material: Polyester – Metallized Case: Tape Wrap and Epoxy Fill Termination: Solid Wire Dimension inches: 0.828" T x 1.844" H x 1.188" L Dimension mm: 21.0mm x 46.8mm x 30.2mm
X663F 2 5 50	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 2 Tolerance: ±5% Voltage Rating - DC: 50V Operating Temperature: -55 °C to +85 °C IPeak: 8 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Construction: non-inductive wound metallized polyester film Dielectric Material: Polyester – Metallized Case: Tape Wrap and Epoxy Fill Termination: Solid Wire Dimension inches: 0.375" T x 1.032" H x 0.594" L Dimension mm: 9.5mm x 26.2mm x 15.1mm
X663F 2 5 600	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 2 Tolerance: ±5% Voltage Rating - DC: 600V Operating Temperature: -55 °C to +85 °C IPeak: 19 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Construction: non-inductive wound metallized polyester film Dielectric Material: Polyester – Metallized Case: Tape Wrap and Epoxy Fill Termination: Solid Wire Dimension inches: 1.095" T x 1.844" H x 1.578" L Dimension mm: 27.8mm x 46.8mm x 40.1mm
X663F 3 10 100 / 200	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 3 Tolerance: ±10% Voltage Rating - DC: 100V / 200V Operating Temperature: -55 °C to +85 °C IPeak: 12 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Construction: non-inductive wound metallized polyester film Dielectric Material: Polyester – Metallized Case: Tape Wrap and Epoxy Fill Termination: Solid Wire Dimension inches: 0.500" T x 1.594" H x 0.828" L Dimension mm: 12.7mm x 40.5mm x 21.0mm
X663F 3 10 400	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 3 Tolerance: ±10% Voltage Rating - DC: 400V Operating Temperature: -55 °C to +85 °C IPeak: 19.5 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Construction: non-inductive wound metallized polyester film Dielectric Material: Polyester – Metallized Case: Tape Wrap and Epoxy Fill Termination: Solid Wire Dimension inches: 0.938" T x 1.844" H x 1.469" L Dimension mm: 23.8mm x 46.8mm x 37.3mm
X663F 3 10 50	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 3 Tolerance: ±10% Voltage Rating - DC: 50V Operating Temperature: -55 °C to +85 °C IPeak: 9 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Construction: non-inductive wound metallized polyester film Dielectric Material: Polyester – Metallized Case: Tape Wrap and Epoxy Fill Termination: Solid Wire Dimension inches: 0.406" T x 1.344" H x 0.625" L Dimension mm: 10.3mm x 34.1mm x 15.9mm
X663F 3 20 100 / 200	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 3 Tolerance: ±20% Voltage Rating - DC: 100V / 200V Operating Temperature: -55 °C to +85 °C IPeak: 12 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Construction: non-inductive wound metallized polyester film Dielectric Material: Polyester – Metallized Case: Tape Wrap and Epoxy Fill Termination: Solid Wire Dimension inches: 0.500" T x 1.594" H x 0.828" L Dimension mm: 12.7mm x 40.5mm x 21.0mm
X663F 3 20 400	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 3 Tolerance: ±20% Voltage Rating - DC: 400V Operating Temperature: -55 °C to +85 °C IPeak: 19.5 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Construction: non-inductive wound metallized polyester film Dielectric Material: Polyester – Metallized Case: Tape Wrap and Epoxy Fill Termination: Solid Wire Dimension inches: 0.938" T x 1.844" H x 1.469" L Dimension mm: 23.8mm x 46.8mm x 37.3mm
X663F 3 20 50	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 3 Tolerance: ±20% Voltage Rating - DC: 50V Operating Temperature: -55 °C to +85 °C IPeak: 9 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Construction: non-inductive wound metallized polyester film Dielectric Material: Polyester – Metallized Case: Tape Wrap and Epoxy Fill Termination: Solid Wire Dimension inches: 0.406" T x 1.344" H x 0.625" L Dimension mm: 10.3mm x 34.1mm x 15.9mm
X663F 3 5 100 / 200	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 3 Tolerance: ±5% Voltage Rating - DC: 100V / 200V Operating Temperature: -55 °C to +85 °C IPeak: 12 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Construction: non-inductive wound metallized polyester film Dielectric Material: Polyester – Metallized Case: Tape Wrap and Epoxy Fill Termination: Solid Wire Dimension inches: 0.500" T x 1.594" H x 0.828" L Dimension mm: 12.7mm x 40.5mm x 21.0mm
X663F 3 5 400	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 3 Tolerance: ±5% Voltage Rating - DC: 400V Operating Temperature: -55 °C to +85 °C IPeak: 19.5 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Construction: non-inductive wound metallized polyester film Dielectric Material: Polyester – Metallized Case: Tape Wrap and Epoxy Fill Termination: Solid Wire Dimension inches: 0.938" T x 1.844" H x 1.469" L Dimension mm: 23.8mm x 46.8mm x 37.3mm
X663F 3 5 50	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 3 Tolerance: ±5% Voltage Rating - DC: 50V Operating Temperature: -55 °C to +85 °C IPeak: 9 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Construction: non-inductive wound metallized polyester film Dielectric Material: Polyester – Metallized Case: Tape Wrap and Epoxy Fill Termination: Solid Wire Dimension inches: 0.406" T x 1.344" H x 0.625" L Dimension mm: 10.3mm x 34.1mm x 15.9mm
